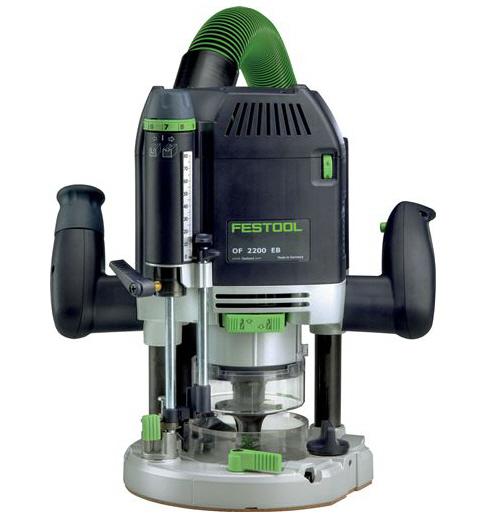

Festool OF 2200 EB Router

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • Large Bit Capacity - The standard base for the OF 2200 router has a 3-3/8" opening facilitating room for the largest of router bits.
  • Control Placement - Operational controls are at your fingertips, literally. The power trigger, trigger lock, locking knob for the double-column plunge depth lock and release trigger for the 360° dust shroud are intuitively placed letting you work smarter.
  • Open Access For Bit Changes - The 360° dust shroud, when in the retracted position, in conjunction with the widely spaced double plunge columns provide ample room for accessing the collet during bit changes.
  • 1/2" Collet - With an opening of 3-3/8" on the standard base, the OF 2200 can take advantage of a full assortment of router bits.
  • Four Position Depth Stop Turret - Control plunge depth with the ability to set pre-configurable depths using the four-position turret. An integrated 5/64" (2mm) offset position saves valuable time
  • 360º Dust Deflector - Maximize dust extraction using the 360° swiveling Dust Extraction Chip Deflector. Included with the OF 2200, the hood contains chip ejection when routing edges.
  • Locking Depth Stop Rod - Save time by locking the OF 2200 in its plunged position and calibrate the plunge depth using the four-position depth stop turret in a single step.
  • Edge Guide System - The Edge Guide System (494 680), sold separately, provides the quickest, most accurate way to perform edge routing.
  • Super Fine Micro-Adjustment Knob - Fine tune the plunge depth setting of the OF 2200 using the Micro-Adjustment Knob in increments of 1/256" (1/10mm)! Each revolution of the knob which is clearly marked equals 1mm.
  • Flat Top - It may seem insignificant, but being able to turn the OF 2200 upside down on its flat top makes changing bits and bases easier.
  • Dust Extraction Column - The Dust Extraction Column is placed on the back of the OF 2200 and extends to the top of the router and includes a swivel nozzle.
  • Intuitive Controls - Operating the OF 2200 could never be easier. Controls are clearly labeled with icons indicating purpose and adjustment direction. Work smarter without having to locate the manualIntuitive Controls - Controls are clearly labeled with
  • Guide Rail Adapter - The Guide Rail Adapter included in the OF 2200 Base Accessory Kit (574 260), sold separately, enables attachment of the OF 2200 to the Festool Guide Rail System.
  • Retractable, Spring-Loaded 360º Dust Shroud - The shroud maximizes dust extraction while providing high visibility of the workpiece. Release the dust shroud using a release lever at your fingertips.
  • Guide Rail Adapter - The Guide Rail Adapter included in the OF 2200 Base Accessory Kit (574 260), sold separately, enables attachment of the OF 2200 to the Festool Guide Rail System.
  • Magnetic Spindle Brake - The Magnetic Spindle Brake of the OF 2200 is a faster, more reliable method of retarding spindle motion. The use of magnetic force to stop the spindle also prolongs the service life of the motor .
  • 30º Handle Offset - You hold the handles at a position that is comfortable and natural. A side effect of this handle configuration is that by applying forward motion to the router you are also applying lateral force against the edge of the workpiece.
  • Dust Extraction Column - The Dust Extraction Column is placed on the back of the OF 2200 and extends to the top of the router and includes a swivel nozzle.
  • Variable Speed Control - Dial in the appropriate spindle speed based on the material and application. An onboard cross reference guide shows the spindle RPM for each setting.
  • Single-Tool Ratcheting Collet - Bit changes have never been easier. Use the spindle locking lever to disengage spindle movement and loosen the collet with a ratcheting motion.
  • Magnetic Spindle Brake - The Magnetic A faster, more reliable method of retarding spindle motion. The use of magnetic force to stop the spindle also prolongs the service life of the motor.
  • Triple Bearing Design - Dampens spindle and bit deflection. With bearings at the top, middle and bottom, the spindle is less likely to wobble.
  • Quad Center Line Marks - Quad Center lines appear on each of the four "sides" of the router and provide an easy reference point for the location of the center of the router bit and router path.
  • Self-Centering Template Guide Socket - The OF 2200 features a self-centering, magnetic, keyed socket for accepting template guides. Template guides click into place and are held securely under the router base after it is replaced.
  • Plunge Depth Lock -Lock the plunge depth of the OF 2200 with the twist of your wrist while maintaining complete control.
  • 2200 Watt Motor - Harness 2200 Watts of power, possibly making the OF 2200 the most powerful router available!
  • Supportive Base - The sub-base of the OF 2200 is designed to prevent scratches, glides easily and offers a flat bearing surface.
  • Tool-Less Hinged Base System - No tools needed! Use the spring loaded release lever to remove the hinged bases from the OF 2200.

Festool OF 2200 EB Router

Be the first to review this product

Availability: In stock.

$800.00
Add Items to Cart
OR

Quick Overview

• Includes 1/4", 1/2", 8 mm collets
• 2200 watts 18 amps 120 v AC
• Revolutionary router design

Product Description

You might even think it is a portable shaper
The OF 2200 is our most powerful router. It can easily plunge into 8/4 hard maple and make a 1/2" groove in a single pass. With 2200 watts of power, you might think you are working with a portable shaper. Designed for exceptional maneuverability, the OF 2200 incorporates many new ergonomic design features, making it easy to control, and a pleasure to use on the jobsite or in the shop.

Includes:
• Chip catcher
• Collet - 1/2"
• Dust extraction hood
• Standard U.S. guide bushing adapter
• Systainer - SYS 4

Specifications:
• Collet diameter range - 1/4", 1/2", and 8 mm
• Drive shaft speed - 10,000 - 22,000 rpm
• Power consumption - 2200 watts / 18 amps 120 v AC
• Quick depth adjustment range - 3 5/32"
• Weight - 17.2 lbs.
